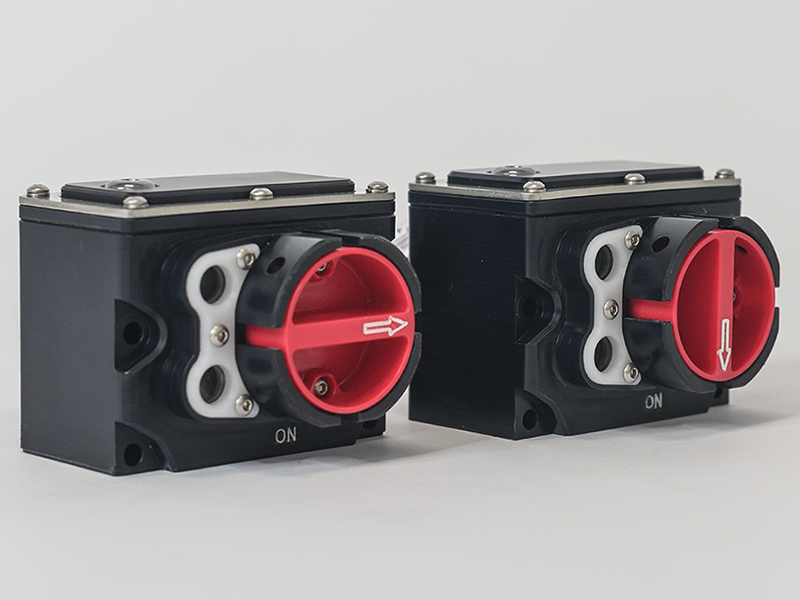

Standard version of the switch is pressure compensated and manufactured with the higher quality plastic polymer and stainless steel (316L), to reduce the overall weight but at the same time ensure a rugged and reliable design, in order to reduce maintenance and failures during the lifetime.

Switch has been provided of two led indicators, one green and one red, to permit a clear vision of the switch (or machine) status in any condition, when subsea for operative reason and during maintenance for safety reason.

Switch is provided of an additional safety feature having a locking system that permit user to lock the switch only in OFF position (this can be very useful during vehicles maintenance).

Switch has been qualified in pressure, electrically and for oil compatibility with the oils more used in the subsea world as Shell Tellus, Royal Purple and Panolin.

Features and benefits

• Pressure up to 700 bar
• Electrical ratings (max) 250VAC-5A or 30VDC-5A
• Operating frequency up to 60 operation/minute
• Operating cycles up to 100’000
• High luminosity LEDs for switch status identification
• Mechanical interface ½” hose fitting
• Lockable system

Options on request

• Shell materials (aluminum, super duplex, etc.)
• Handle cover color (e.g. red, yellow, etc.)
• LEDs color (e.g. yellow, blue, etc.)
• Hose terminated with subsea connector like Seacon, Subconn, CRE, etc.

Special engineering

• Different design and/or electrical/mechanical characteristics also for small amounts of units
